We construct low energy, robust peelers, according to the latest innovative technological developments and with specific attention to low maintenance and maximum cleaning accessibility.

Washed potatoes are poured into the drum of the potato peeler from the top, the inner of the drum is coated with abrasive carborundum, as the base of the drum rotates the potatoes strike against the abrasive inner wall which removes the skin, this processing requires minor flow of water through a pipe to remove the skin from the walls,

The peeled potatoes are removed from the side of the drum through a gate.

The Peeler is a heavy duty model, it is made from a SS Pipe 5 mm thickness, than grooves are done inside the Pipe so that emery (abrasive ) stick to the pipe properly.

Model PP 14 PP 16 PP 18 PP 20 PP 24
Dia. & Height of Drum 14″ 16″ 18″ 20″ 24″
Production Capacity ( Raw Potatoes) 120-140 Kg/Hr 200-240 Kg/Hr 250-300  Kg/Hr 350-400 Kg/Hr 450 Kg/Hr
Power required .5 H.P. 1 H.P. 1.5 H.P. 2 H.P. 3 H.P.
Cycle Time 3 Mins 3 Mins 3 Mins 3 Mins 3 Mins

[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_empty_space height=”100″][/vc_column][/vc_row][vc_row][vc_column width=”3/4″][vc_custom_heading text=”Slicer”][mpc_divider preset=”mpc_preset_2″ width=”20″ align=”left” lines_color=”#df5461″ lines_weight=”2″][vc_empty_space][vc_column_text]Peeled potatoes are fed in to the SS model slicer from the top ,The rotor pushes the  potatoes against the wall of the cutter , the slices are cut according to the cutter fitted,The slices slide down with flow of water into a trough.

Understanding the requirements of the snacks making market, we have engineered easy to handle Potato Slicers designed in two different capacities: 250 kg and 400 kg. Our Potato Slicers have been manufactured using sophisticated infrastructure. Providing you dust resistance and hassle-free operations; the Potato Slicers comes with three basic cutters used to make Plain chips, ripple chips, potato shreddings / laccha / sully and French fries. We also provide with the feature of the addition of dies in 400 kg model with a prime requisite of additional floor space: 20″*54″.

Model PS 250 PS 400 PSG 400 PSG 400 SS
Die/Cutter Dia 6″ 10″ 10″ 10″
Production Capacity (Raw Potatoes) 250 Kg/ Hr 400 Kg/Hr 400 Kg/Hr 400 Kg/Hr
Power Required 0.5 H.P. 1 H.P. 2 H.P 2 H.P
MOC of Die/Cutter Aluminium Aluminium Aluminium Stainless Steel

[/vc_column_text][/vc_column][vc_column width=”1/4″][vc_empty_space height=”70″][vc_single_image image=”4186″ img_size=”full” alignment=”center” style=”vc_box_shadow”][/vc_column][/vc_row][vc_row][vc_column][vc_empty_space height=”100″][/vc_column][/vc_row][vc_row][vc_column width=”1/4″][vc_empty_space height=”70″][vc_single_image image=”4187″ img_size=”large” alignment=”center” style=”vc_box_shadow”][/vc_column][vc_column width=”3/4″][vc_custom_heading text=”Dryer”][mpc_divider preset=”mpc_preset_2″ width=”20″ align=”left” lines_color=”#df5461″ lines_weight=”2″][vc_empty_space][vc_column_text]Sliced chips have to be dewatered so that at the stage of frying the fuel consumption is less and the quality of chips is better. To remove the excess water the sliced chips are fed in to a basket which rotates at high RPM (1200). Excess water is removed by a pipe. The basket is removed after dewatering and the slices are emptied.

Centrifugal Dryer
Model CD-05 CD-10
Size of Basket 14″D X 12″H 16″DX16″H
Capacity Per Batch 5Kg/ 3 mins 10-12Kg/ 3 mins
Power Required 0.5 H.P. 1 H.P.



Centrifugal Dryer Tilting
Model CDT 20 CDT 30
Production Capacity 20 Kg/4mins 30 Kg/4mins
Production Per hour 300 Kg/Hr 450 Kg/Hr
Power Required 1.5 H.P. 2.5 H.P.

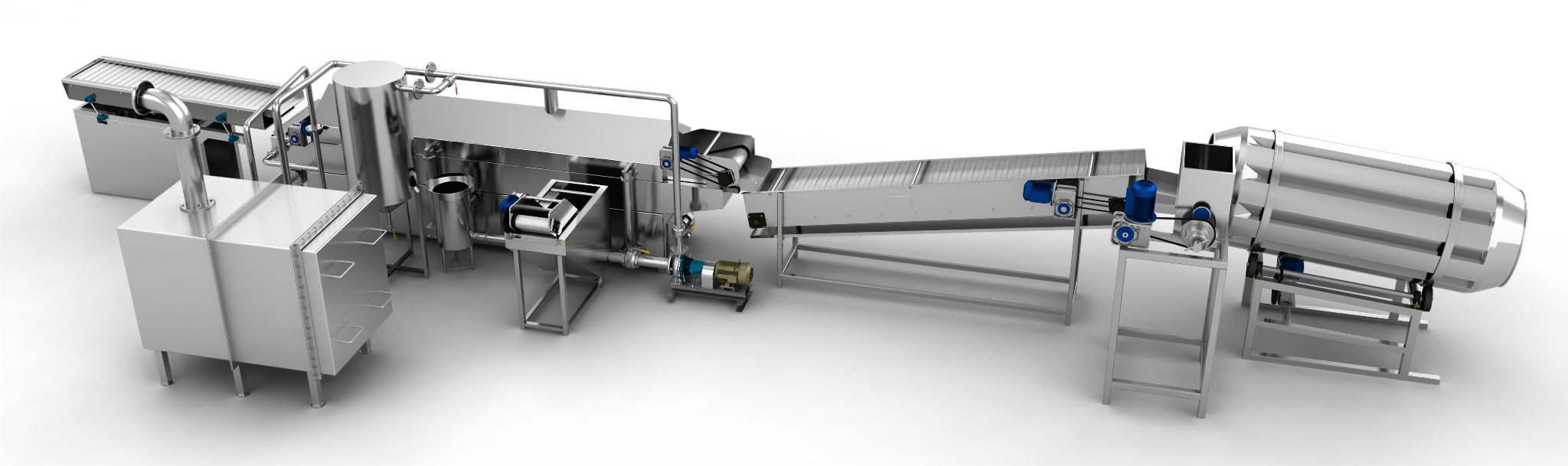

[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_empty_space height=”100″][/vc_column][/vc_row][vc_row][vc_column width=”3/4″][vc_custom_heading text=”Frying & Seasoning”][mpc_divider preset=”mpc_preset_2″ width=”20″ align=”left” lines_color=”#df5461″ lines_weight=”2″][vc_empty_space][vc_column_text]In the Automation part, which completes the frying & seasoning, follows this process. It has shaker, fryer, de-oiling conveyer and seasoning system. Its Fryer is available with different heating systems such as direct & indirect and fuel requirements such as wood, diesel & thermic.

We offer these spice mixing machines at economical prices in variations of sizes shipped both in India and abroad!
