Heating System

To heat the edible oil for food processing, there is a need of heating systems. So, we have designed a unique range of heating systems in the form of heat exchangers. Heat exchanger uniformly heats oil throughout the fryer so product is cooked equally and with even color. We offer heat exchangers for automatic and batch fryers which are based on diesel, Gas, LDO, thermic fluid etc.

Below are the heating systems :

Direct Heating System

In these type of heat exchangers edible oil is heated in a coil by a direct flame, edible oil is flowing continuously between the fryer and the heat exchanger, the direct flame can be generated by



  • Diesel
  • LDO
  • Natural Gas
  • LPG
  • Solid fuel based (wood,coal,bio mass briquette )

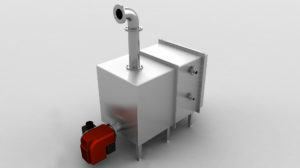

Single Pass Gas/Diesel H.E.

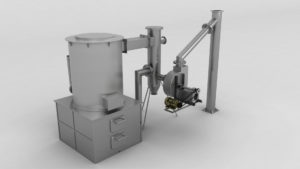

Three Pass Wood H.E.

In-Direct Heating System

In these type of heat exchangers edible oil is heated indirectly by thermic fluid, Solid Fuel/Diesel/Gas heat the thermic fluid in a thermobaric system and in turn the thermic fluid heats the edible oil. Edible oil is flowing continuously between the fryer and the heat exchanger, while the thermic fluid flows between the Thermo Pac and the heat exchanger. The thermic fluid can be heated by :

  • Diesel
  • LDO
  • Natural Gas
  • LPG
  • Solid fuel based (wood, coal, biomass briquette )

The temperature is controlled by controlling the amount of thermic fluid entering in the heat exchanger, it can be automatic or manual
All above heat exchangers available in various capacities, 1 lakh Kcal to 10 Lakh Kcal

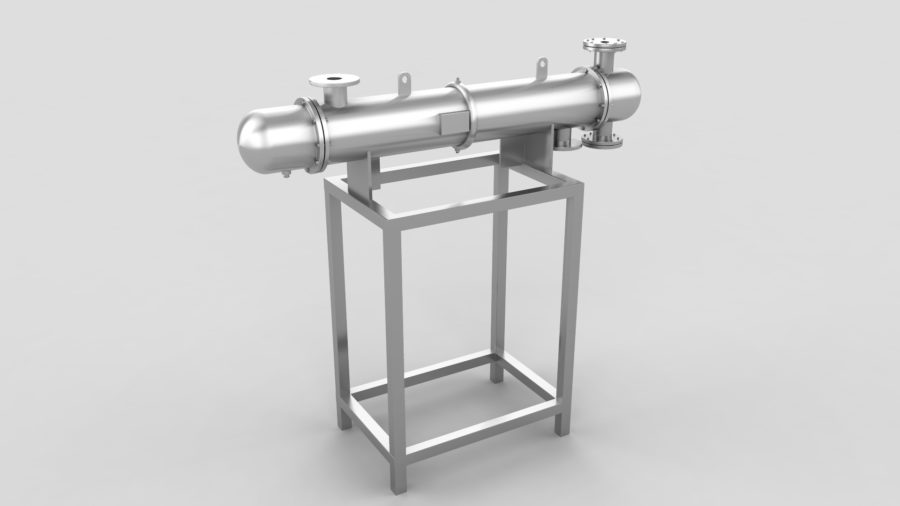

Thermic-Heat-Exchanger
In-direct Thermic H.E.
